240cm Digital Printer For Fabric , Oxford Tent Digital Fabric Printing Machine

  • 1
  • 2

Brand Name : SAER

Model Number : CSR 2200

Certification : CE

Place of Origin : China

MOQ : One set

Price : FOB 18000 - 22000$ / SET

Payment Terms : T/T

Supply Ability : 1000 sets / month

Delivery Time : Within 5 Working days after the payment arrived

Packaging Details : Non fumigation wooden package

Product Name : Digital Textile Printer

Suitable fabric type : Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford etc

Type : Inkjet printer

Print head : Epson DX5

Ink supply mode : Continuous ink supply

Application : Indoor & Outdoor

Max Resolution : 1400dpi

Condition : New

Color Mode : CMYK

Max materials width : 2.4m

Contact Now

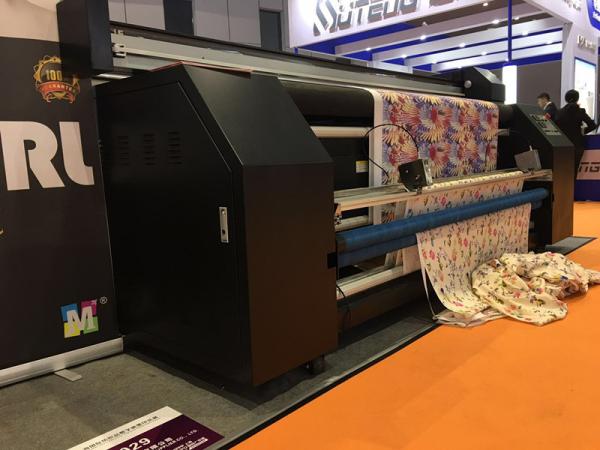

240cm Digital Textile Printer For Outdoor Foldable Oxford Tent Making

Quick Detail:

240cm All-in-one Printer system(with the function of print and heat,can not seperate to two individual parts)and one filter fan,one stop solution.

Description:

1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate

9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.

Applications:

Printed directly on Oxford fabric, printed fabric can be used to make shift tents

Specifications:

Product Model CSR 2200
Printhead Piezo technology, Two Epson DX5 printer heads
Ink Environmental Sublimation ink, Pigment Ink optional
Color Dual KCMY
Printing Media Soft roll to roll
Nozzles (180 nozzles x 8 lines ) x2 heads
Printer head higher 15mm / 6mm ( Adjustable )
Ink supply model Continuous ink supply
Ink Volume 2000ML Volume ink,automatic ink detector
Max materials width 2400mm
printing width Maximum 220 cm

Print mode and speed

Mode speed
Draft 2pass 40m² / h 720 * 360dpi
3pass 32m² / h 360 * 1080dpi
Standard 4pass 22m² / h 720 * 720dpi
6pass 18 m² / h 720 * 1080dpi
High Quality 8pass 12 m² / h 720 * 1440dpi
Image Data Format TIFF,JPEG
Rip Software ONYX
Roll diameter 3 Inch
Maximum weight for roll material 100kg
Interface USB 2.0
RAM 128M
Printer power AC220-240V / AC220-240 Adaptive 50/60Hz
Sublimation machine AC220-240V. 16A. 50/60Hz
Power consumption Direct dye sublimation heater 3500w
Printer 5500w
Temperature 20-32°C(68 – 89.6 ℉)
Humidity 40-60% RH
Packing Dimension(L * W * H)

Printer system: 3550*1111*1510(MM) 5.95CBM

Filter: 620X550X1050(MM) 0.36CBM

Weight

Net Weight : Printer:788kg Filter:55kg

Gross Weight : Printer: 986kg Filter:72kg

Competitive Advantage:

• Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
• The printed image color is bright and vivid with nice color gamut.
• High speed
• It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
• Low cost and no need of any kind transfer paper, liner breaking the highest costs performance

240cm Digital Printer For Fabric , Oxford Tent Digital Fabric Printing Machine

Specifications:

Save Money No need to use transfer paper

Save Time No need to perform heat transfer step

Save Space No need to keep a workplace for a heat transfer

Produtc Service :

1. This machine has One year warranty .

2. We Support Oversea technical service and with all life techincal support.

How To Order:

Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery

240cm Digital Printer For Fabric , Oxford Tent Digital Fabric Printing Machine 240cm Digital Printer For Fabric , Oxford Tent Digital Fabric Printing Machine 240cm Digital Printer For Fabric , Oxford Tent Digital Fabric Printing Machine
